PYRAMID TEA PACKING MACHINE (up to 100bpm)

+ OUTER ENVELOPE MACHINE - KH-400 (up to 80bpm)

The line includes the following:

1. Model #  APO 11 P - Miflex automatic Pyramid Tea bag machine

(8 load cell-weighing system). (60 mm x 60 mm – standard size)

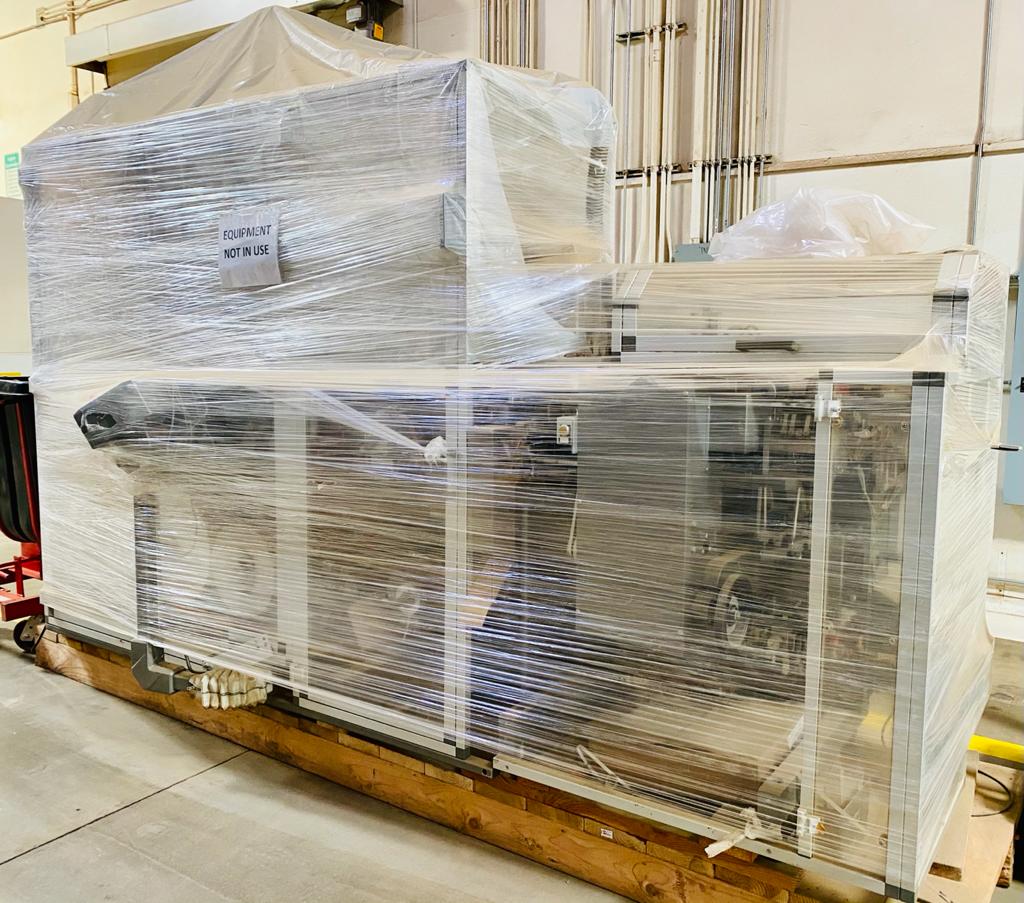

PYRAMID MACHINE – MIFLEX MODEL # APO-11P

The Pyramid Tea bag machine MIFLEX model #  APO 11P is a high performance tea bag packing machine capable of producing a triangular and a rectangular Teabag with or without heat sealed outer envelope.

Technical data:

Electrical supply -                              3x400V/230V 50Hz

Pneumatics                                                       6 bar

Installed power                                                3,5 kVA

Compressed air consumption -                         2,5 m3 /h

Overall dimensions of APO-11P -    2000mm x 2500mm x 3500mm

Weight:                              1100 kg

No. of Staff required to operate:             1 person

Packing material:                     Nylon, PLA, other ultrasonic sealed

Width of packing material                         140mm  max.

Diameter of material reel                           500mm

Reel core diameter:                         75mm

No. of reels installed on machine :              1 reel

Dimensions of bag with tag and thread:    60mm x 60mm

Product:

Tea or fruit tea with fraction dimensions:           12 – 15  mm

Bag's weight                            from 2 to max. 4gram

Max. Volume of  product                25cm³

Efficiency:



Output - max. 100 Pcs/min

(Depending on the type of teas and materials used)

Construction:

All components of Pyramid machine APO-11P are placed on self-supporting steel frame covered by protections. All machine elements having direct contact with packed product are made of materials approved by the State Institute of Hygiene (PZH).

All components are easy for cleaning.

This machine is equipped with an ultrasonic sealing and cutting system, and with a variable adjustment of speed.

The basic sub-assemblies APO-11-P Pyramid machine:

•     Packing material unwinder

•     Guide rolls

•     Seam molding system

•     Vertical ultrasonic sealing system

•     Horizontal ultrasonic sealing syste

•     Main drive with regulation of working speed :  10-100 cycle/ min.

•     8 load cell-weight dosing system

•     control cabinet

 Accessories:

1.    Control

•     PCD - SAIA Swiss company

•     sensors

•     visualization of error conditions

2.    Pneumatics by 'METAL WORK' company

3.    Mechanic and pneumatic drives

4.    Variable adjustment of speed

5.    Moved elements protected by guards

6.    CD -  machine program

Protective system – residual current operated protection device.

Mechanical protection – guards.

Working conditions – general-purpose production room

Location: North America

Please contact us for further details.

The line is in good working condition and is available immediately.

It comes complete Cyclone and Afterburner positioned above.

Also includes a Destoner supplied by Giesen which has been extended in height to accommodate a long outfeed conveyor that conveys the beans across the factory to a handling area for storing and packing.

It is fitted with a Maxon Gas train and has been upgraded with a reduction motor on the drum drive shaft at the back of the roaster which has replaced the original gearbox.

It is set-up to run on Natural Gas and requires 3 Phase electrical supply.

The cooling tray has been removed ( as per photos) as a new drive motor was being fitted at the time of the inspection.

It has had very little use since it was refurbished, as it was used as back-up roaster to another Probat 120 on site, at times when this was offline due to maintenance and servicing.

The roaster and ancillary equipment is all in very good condition.

Excellent Value roasting line.

This is a 60Kg per batch drum roaster, very similar in design to a Probat roaster.

It has been partially refurbished, having been completely stripped down, shot blasted and painted with a base coat.

It is ready immediately for sale with a view to being refurbished completely to customer requirements.

All original component parts available with the roaster.

A new motor has been supplied, but the original is also included that can run on either single phase or 3-phase.

We can organise to complete the refurbishment in the UK if required.

Current Location: Europe

Excellent value roaster.

Original Year of manufacture: Circa 1956-1958

It has just been completely refurbished by a firm in Germany to a very high standard and is now available for sale.

It comes complete with a Probat Cyclone and a Probat Destoner.

It is set-up to run on LPG Propane Gas and requires three phase eletrcical connection.

It has been brought back to its original set-up and is in perfect working order, ready immediately for sale.
