Manufacturer: Spreafico Srl
Model: SRC 6
Category: Coffee Equipment
Year: 2017
Status: For Sale
Machine Notes:

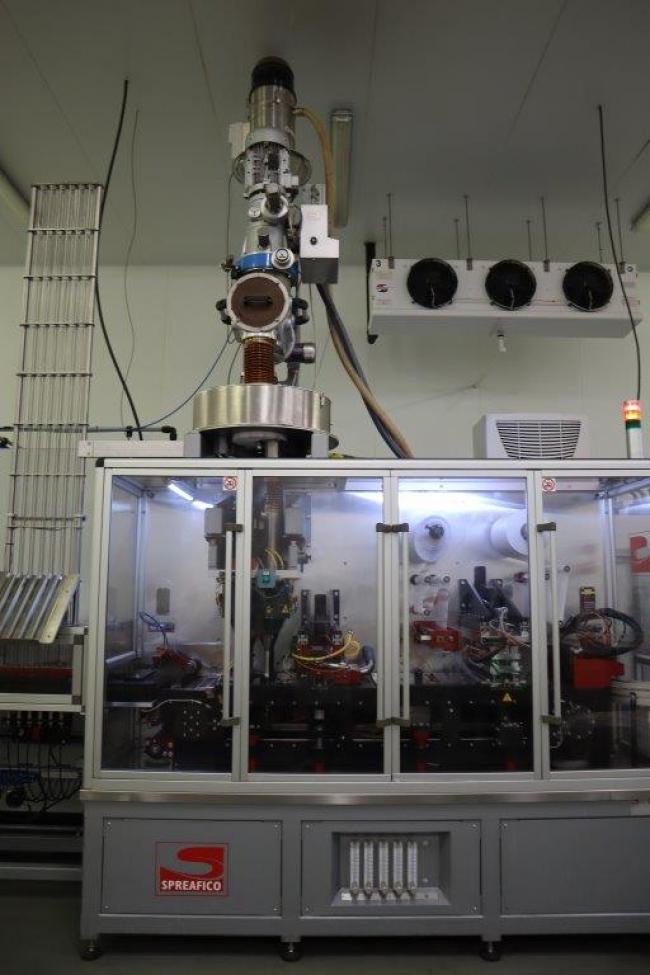

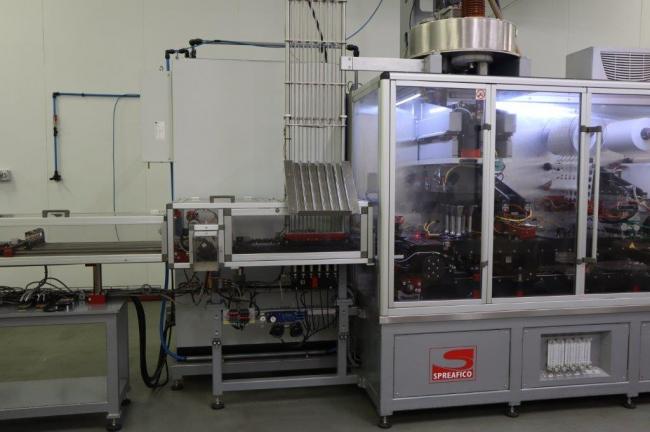

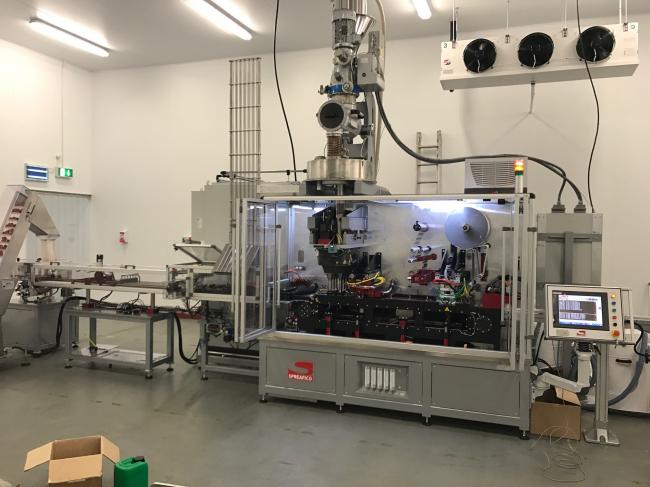

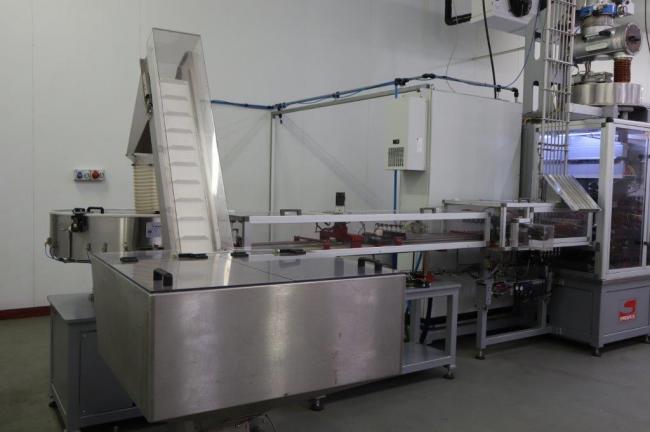

Spreafico 6 Lane Coffee Capsule Packing Line for sale
Runs on Capsulin PBT and IML (Nespresso Compatible) Capsules.
It will also run on Compostable Capsules.
Possible adaptation to run also on Aluminium Capsules

Model: Coffee Capsule Filling System D.37 "SR6N"
Year 2017
Complete with Spreafico Top Loading in-line Cartoner - Year 2017.
This is the latest generation Coffee Capsule Filling and Packing Equipment built by Spreafico Srl. in Italy.
The mechanical stations are moved by a camshaft system.
15" touch-screen operator panel for the utilization and monitoring of the machine function status.

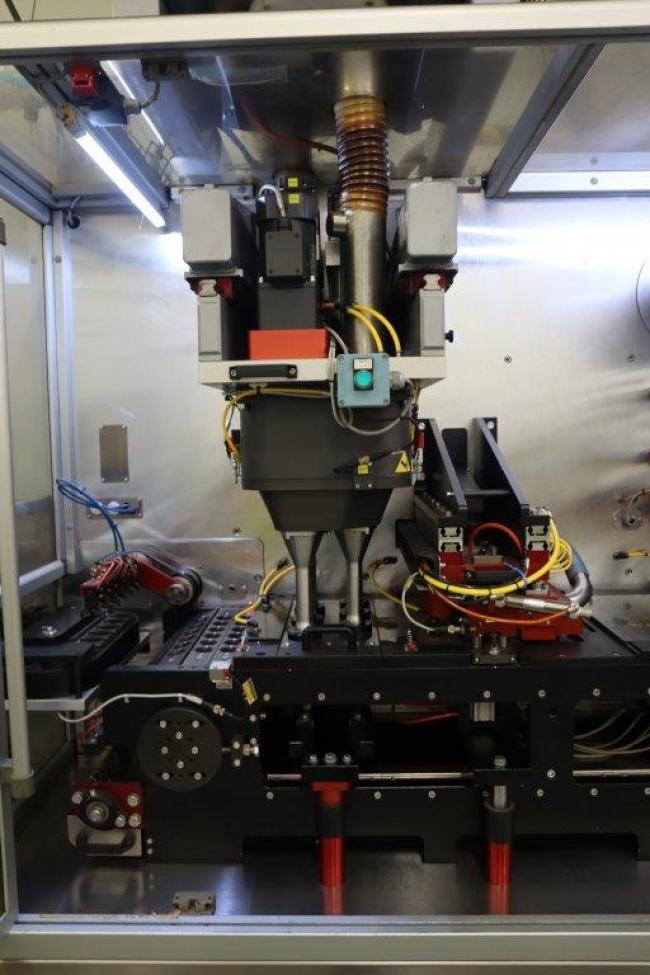

The coffee is dosed through an Auger dosing system which is driven by a brushless motor.
Prearrangement for Nitrogen Tunnel.
In-line weighing system.
Capsules can be closed on top  with Aluminium Foil, micro perforated, filter paper, triplex coupled, PP Lid.
Possibility of inserting filters and diaphragm into the capsule and on its bottom.
This machine can run with coffee, tea or any other soluble product.
Capsule Machine SRC6 Technical data
Output 300-360 capsules/minute.
Dosage tolerance: +/- 0,2 gr – with feedback
Installed power 20 KW
Compressed Air: 6 Bar filtered and dry
Pneumatic consumption (Nl/h) 40000
Nitrogen consumption (Nl/h) 150000
Air Compressed Consumption (Nl/h) 50,000

This line has the tooling and set-up to run various types of Capsule including:

Capsulin PBT and IML with the following films:

 20-micron foil for PBT capsule
 30-micron foil for PBT
 20-micron foil for IML (PP)
 30-micron foil for IML (PP)

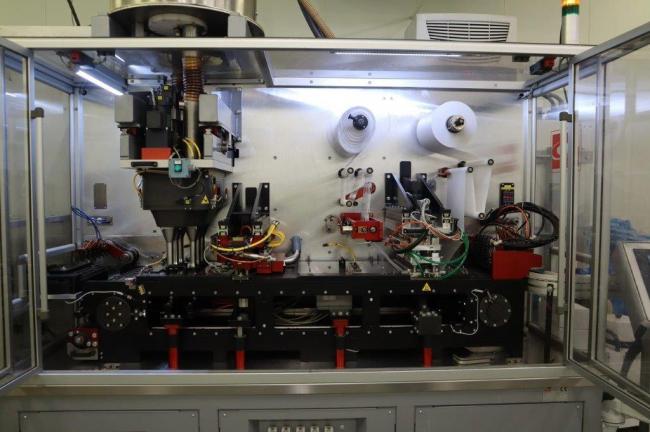

The Capsule Machine Process Description:

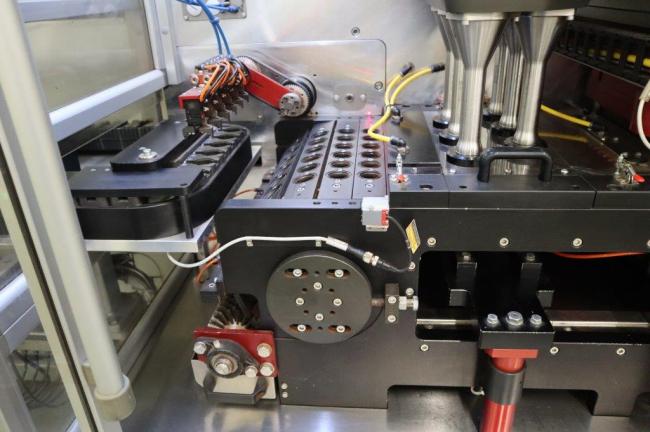

Position1: Automatic Load of 6 capsules
Position2: Capsule Insertion
Position 3: Washing & Saturation with Inert Gas
Position 4: Product dosing process
Position 5: Pressing & Cleaning the capsules
Position 6: Weighing the Capsules
Position 7: Die Cutting & Sealing the Lidding film
Position 8: Unloading good pieces and Waste
All automatic stations: Dosing, Cleaning & Die-cutting, can be easily accessed and removed for cleaning and maintenance.
An Industrial Fridge is installed on top which  helps to maintain the right temperature of the Die-Cut during operation and a fast reduction in temperature when taken off.

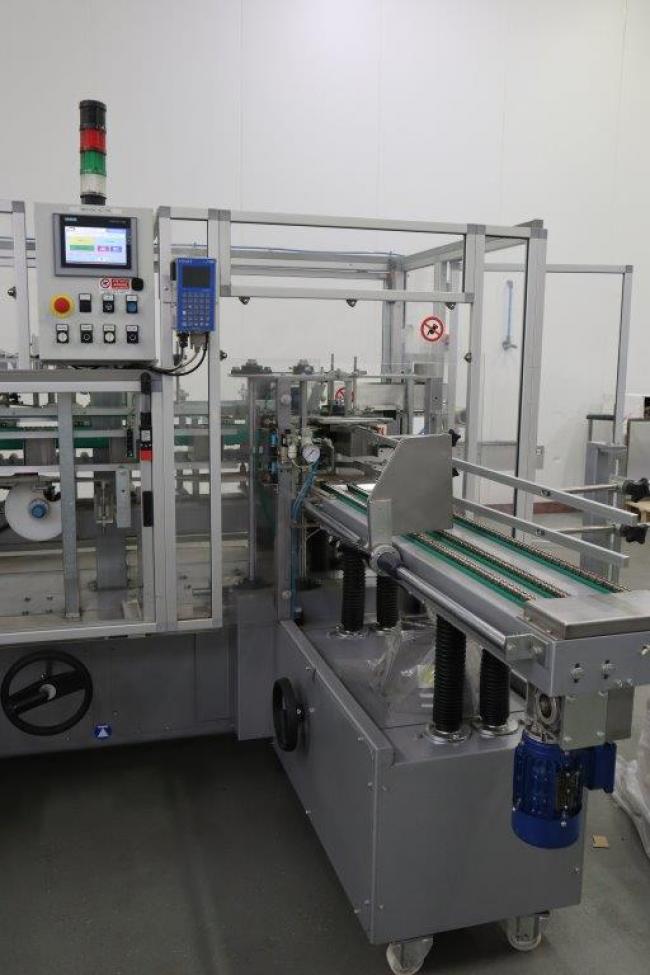

Spreafico Top Load Cartoner - Model B3
This connects in-line with the Spreafico SRC6 Capsule line
It comes complete with tooling for both 10 Capsules/ Pack & 20 Capsules /Pack set up.

Technical data:
Customers 10 Pack Carton size: 8.6 x 3.8 x 14.5 cm
Customers 20 Pack Carton Size: 11.6 x 3.8 x 18 cm
Parameters:
Smallest Size: 7 x 3 x 12 cm
Maximum Size: 15 x 15 x 22 cm

Changeover is very simple. You have to set the Cartoner to 'Manual', move in front, changing manually 26  x funnel+pocket (using 'jog' button), adjust magazine for empty boxes and press desired recipe on the HMI screen.

It takes approx. 20mins to change from one carton size to another.

The Magazine for empty boxes only needs to be adjusted for different measurements.

Technical data:
Electrical Supply: 400v 50Hz 3Phase + neutral + ground
Compressed Air: 200 nl/min 6 BAR at disposal
Noise: 80dB
Colour RAL 9006
The line was taken out of production in 2019 and placed into dry storage.
Inspections are available to see it in storage if required.
NB: Icoperfex Colombini TA250/400 Grinder Included.
PRICE REDUCED for quick sale - Excellent Value Coffee Capsule Line
Location: UK
