Manufacturer: Fuso
Model: FPG-SH Pyramid Tea Bagger
Category: Sold Machines
Year: 2012
Status: Sold
Machine Notes:
Fuso - Model FPG-SH Pyramid Tea Bagging Machine
SOLD

Year 2012

We are pleased to offer on behalf of our client a 2012 Fuso Pyramid tea bagging machine.

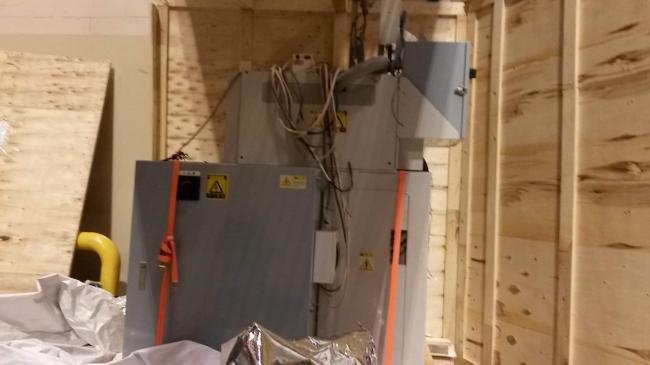

It is currently in storage in Europe and available immediately for sale.

Machine Specifications:
Product:                Tea

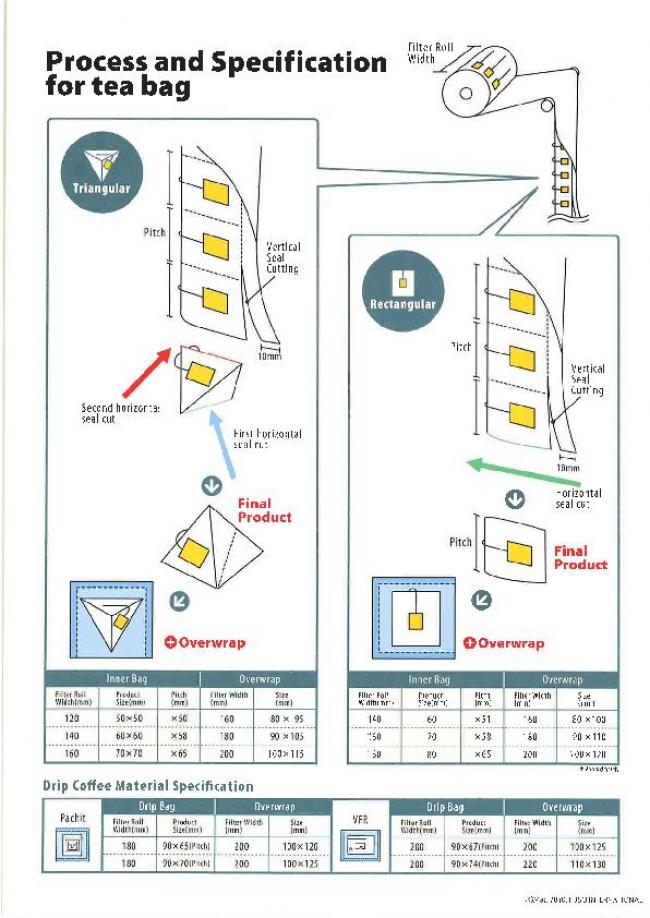

Tea bag Size:        140mm * 58P (Refer to drawing in photos above)

Envelope Size:      90mm * 90 mm

Bag Shape:           Triangular

Tags:                     Tags that have been pre-fixed to the paper

Packaging:            Biodegradable mesh, Nylon Mesh, Non-woven fabric.

Dosing system:     Load cell

Output(speed):      max output of the machine is - 3600 bags / hour

Recommended speed: 3060 tea bags / hour

The output however, is depending on the product characteristics, film quality and product infeed and ambient conditions.
It has to be confirmed upon trials with original film and product.


Technical parameters of  Fuso 12-0604

a)    Drive: Oriental servo  motor

b)    PLC control: Omron

c)    Sensor: Omron

d)    Pnematic component: SMC

e)    Machine construction: Carbon steel paint with Stainless steel contact parts

f)    Electro-installation: 3 PEN 50 Hz, 200 V

g)    Installed power input: 2.5 kW

h)    Air pressure: 0,6 Mpa (6 bar)

i)    Air consumption: 630 L/min by 0,6 Mpa

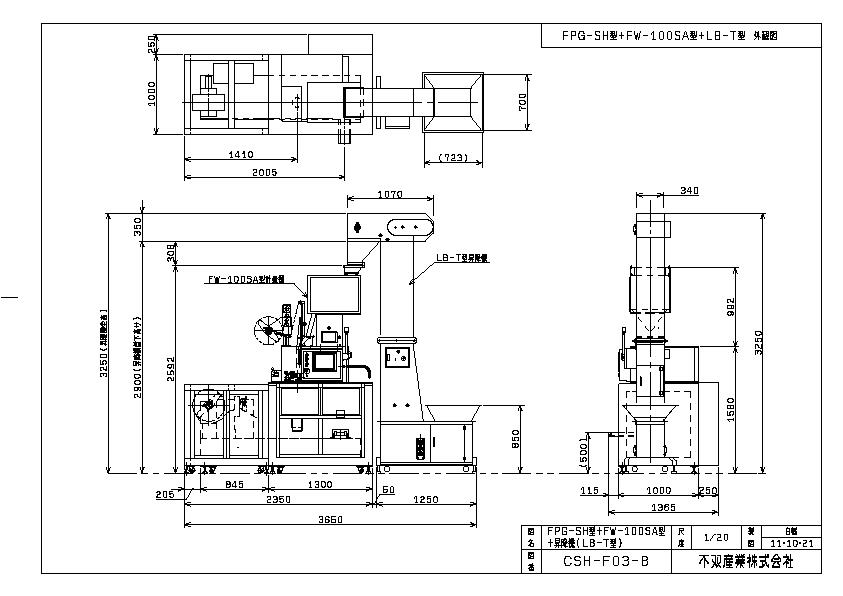

j)    Machine dimension (ground plan): As in photos above.

k)    Machine weight: 1500 kg
l)    Machine documentation: english

m)    Machine manufacturing Year:  Nov : 2012

In excellent condition.
SOLD
