Manufacturer: Giesen
Category: Sold Machines
Status: Sold
Machine Notes:

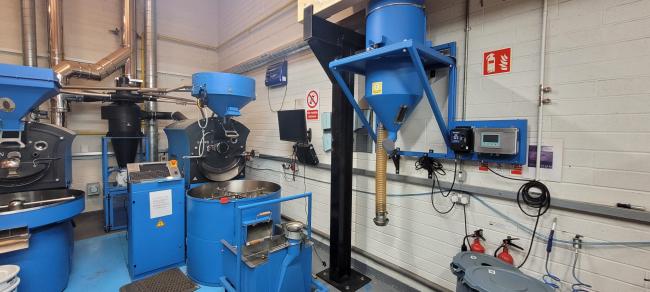

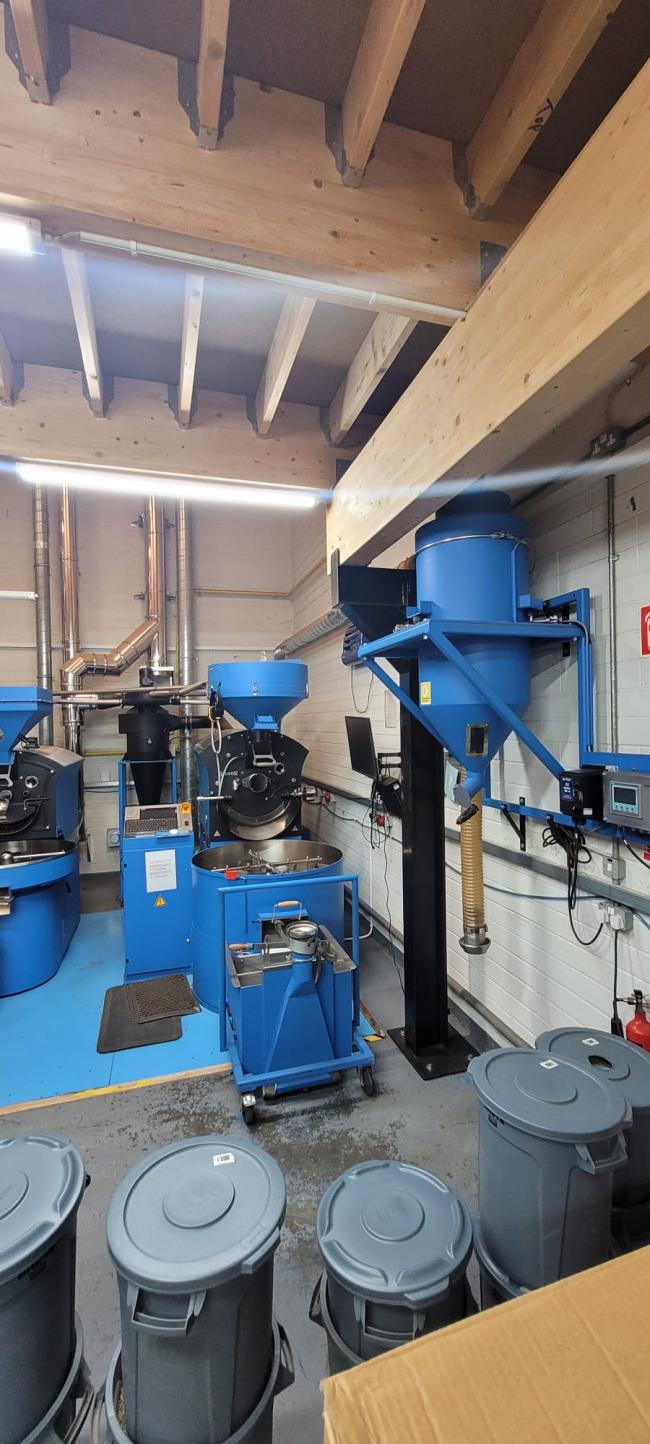

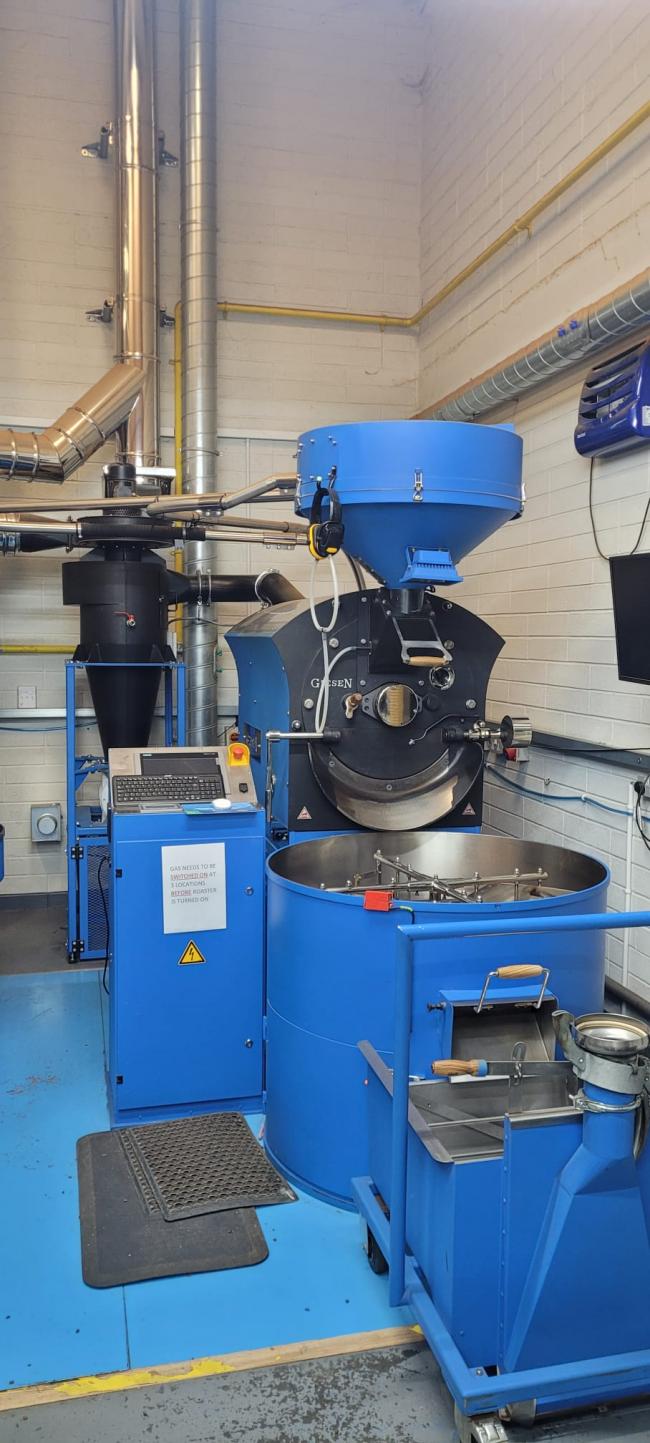

Giesen Coffee Roaster W30A Roaster - SOLD

Installed NEW in 2018
Set-up to run on LPG Propane gas

Capacity: 30 kg green beans / per batch /max. 120 kg/h.

Complete with Green bean loader, Cyclone, Destoner (wall mounted hopper), Control Panel and Flues.
Ceased production in October 2022.Sale delayed until satisfied with new larger capacity roaster installation and set-up that replaced this roaster.

Full details as follows:

Operation side : Left hand side
Drives: Direct frequent drive motors.
Adjustable drum speed control from 35 to 60 Hz
Adjustable roast fan speed control from 30 to 80 Hz
Digital under pressure control
Roast drum: Cast iron drum with high performance bearings.
Dimensions: length 2460 mm x high 2250 mm x weight 930 mm
Exhaust pipe: Exhaust pipe diameter for roast air: Ø 200 mm
Heating: New high performance burner system 65-70 KW heated by  LPG propane gas.
Voltage: 3 x 240V / 50 Hz /60 Hz ---- 3 x 400 V 50/60 HZ

Main paint: RAL 5015 (Sky Blue) Trimmed: standard silver
Cooling tray trimmed: standard silver
Face plate: standard  black
Roast roof: standard stainless steel brushed

Cooling tray:
SPECIAL: one exit at 6 o´clock. 3 minute fast cooling by new cooling fan technology
Low noise fan 3000 m³/h
Easy maintenance Teflon stirrer/brush and scrapper for soft handling
Dimensions: Length 1100 mm x weight 1200 mm x high 960 mm
Exhaust pipe: Exhaust pipe diameter for roast air: Ø 200 mm
Tray cover: Profiled safety cover with electronic safety switches.
Voltage: 3 x 240V / 50 Hz /60 Hz ---- 3 x 400 V 50/60 HZ

Cyclone:
Chaff collector to absorb the coffee chaff from the roast beans.
Easy maintenance.
Low noise fan 600- max1100 m³/h
3 x 400 x 50 /60 HZ
Dimensions: high 2000 mm x weight 700 mm
Exhaust pipe: Exhaust pipe diameter for roast air: Ø 200 mm
Purgation: discharge gate to collect the coffee skin continually In a provided container.

Main Paint: separate cyclone cage color coded black.

Operation panel
Operation side : left hand side 7 inch Siemens touch screen
Roast Profile system intergrated
Controlled and record the whole roasting process. For example: Temperature adjustments, fan and drum speed control, air flow control. Ethernet connection for online support EMERGENCY switch off.

Dimensions: Deep 500 mm x weight 500 mm x high 1200 mm

Paint RAL Code RAL 5015

Destoner OW50 wall mount with scale:
Frequency motor for sensible adjustments and different products -
Sight -glasses for controlling -
wall mounted -
movable wagon -
quick assembly -
digital scale -
wall frame -
Special designed for the W30A

Capacity: approx. 60-70 kg roasted beans depending on the variety

Voltage: single phase 230V - 50 Hz / 60 Hz

Main paint: RAL 5015 Trimmed: standard / silver

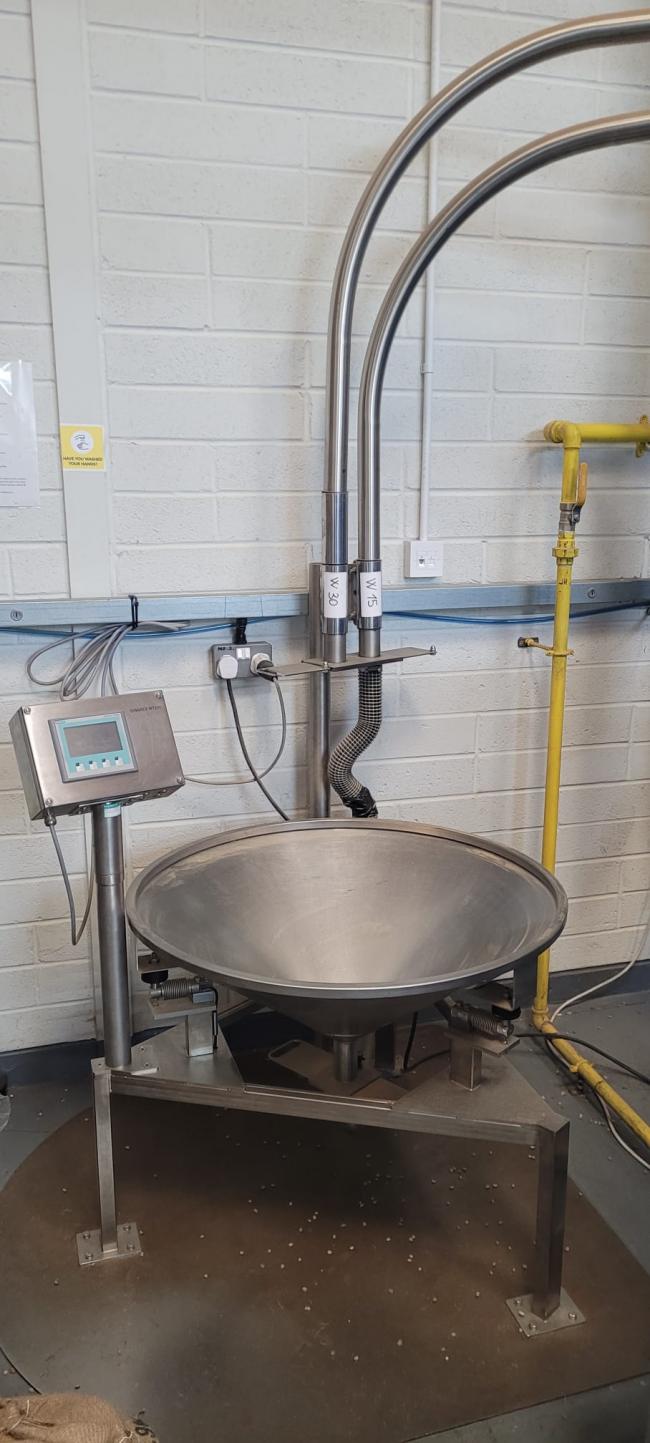

GCC/W30A Green Coffee Transport

Including conveying and extraction technology.
It is a clean dust-free solution to transport green coffee without additional extraction to the outside.
Funnel for about 30 Kg / green coffee, including frame.
Delivery line / suction line consisting of V2A material.
D = 50 mm delivery line including 2 x 90 degree bends.
2 m flexible hose for suction beans from sacks.
Including pipe collars and rubber seals.
Mobile suction and discharge system. Including container for easy cleaning of the dust.

All painted in RAL 5015 from the machine.

Adjustment on W30A hopper.

Spare Parts Included:
1 x Direct Drive Motor
2 x PT100 Thermocouples
1 x New Burner Module


The roaster has been very well maintained with an annual service from Giesen and in-house maintenance carried out weekly including greasing bearings every Friday.

Conditon: Excellent

Lead-time: Available immediately.
SOLD
