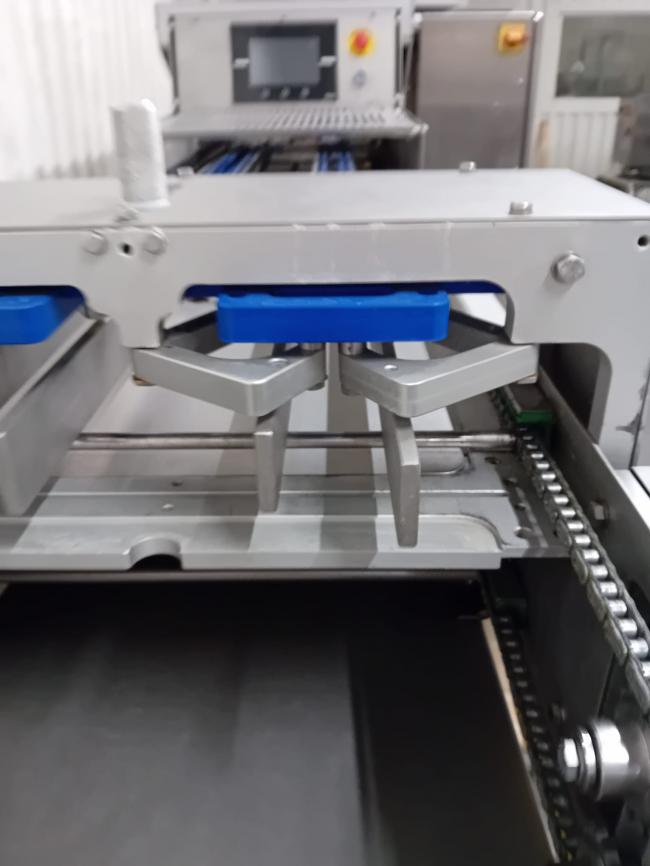

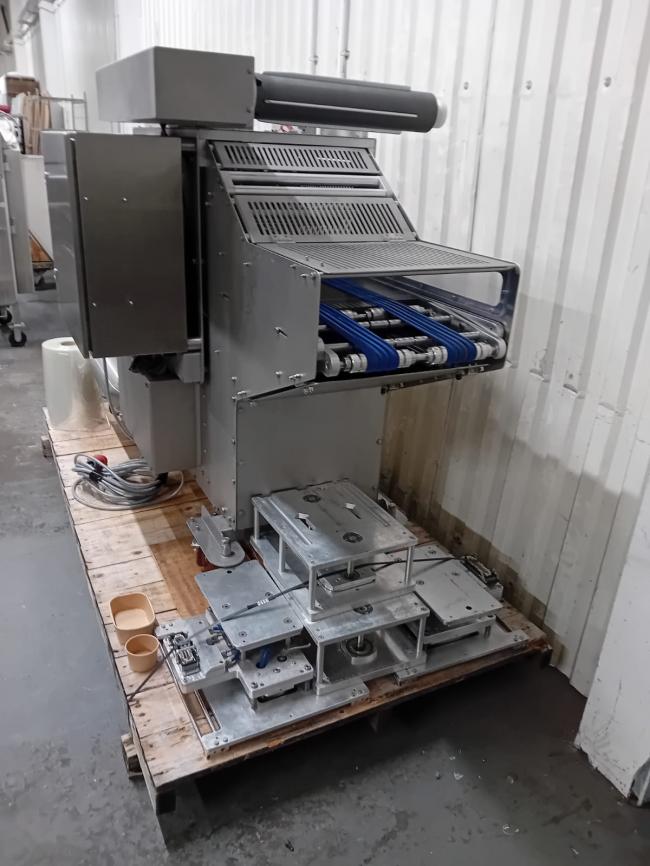

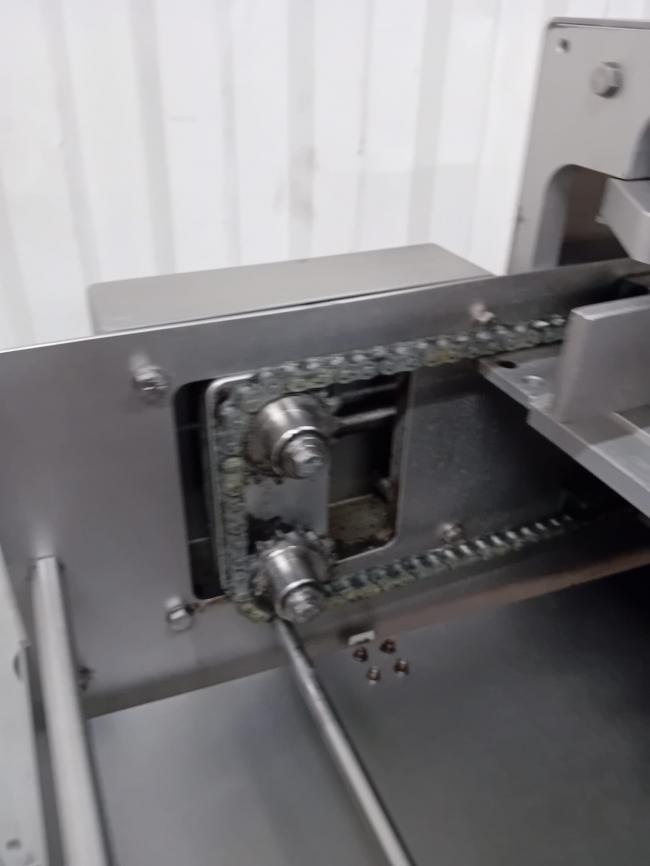

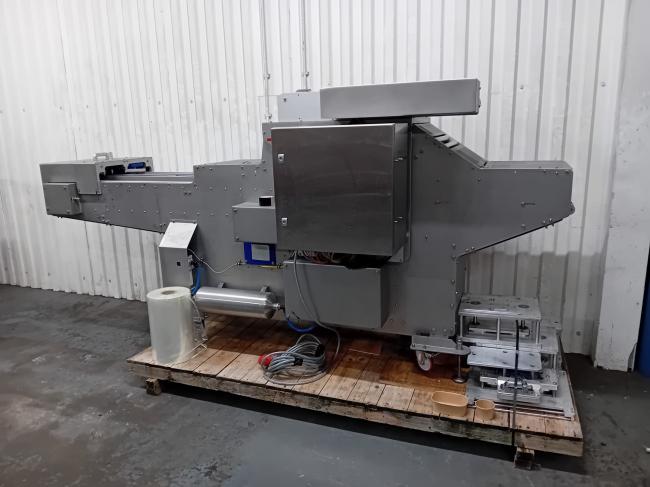

Image 5 Image 7 Image 8
Click above for more images and larger versions
Manufacturer: MPE UK Ltd
Model: iO
Category: Sold Machines
Year: 2020
Status: Sold
Machine Notes:
MPE iO Automatic Inline Tray Sealer - SOLD
Year 2020
This is a Brand New tray sealer that was bought new in 2020 and never used in production.
It comes complete with three Die Sets as follows:
Pot 90mm Dia x 65mm High
Tray Sizes:
174mm L x 124mm W x 60mm H
110mm L x 80mm W x 35mm H
New bespoke tooling could be manufactured as required by the manufacturer to suit your product requirements.
Description:
The MPE i-0 is an inline twin lane all electric indexing push bar sealing system. Single point tray guide adjustment for both lanes. Recipe driven machine set up. Singulating powered outfeed to assist packs into one lane. Once the tooling is installed, recipe selected and the machine started all the operator has to do is load the machine.
Standard Features
o All Electric Machine
o Simple Intuitive HMI controls
o Recipe driven machine set-up
o Easy and quick Tool Change
o Single Point Self-centering tray guides
o Active film torque system
o Film Snap detection
o Registered / printed film ready
o MAP as standard (VMAP optional)
o Up to 16 Cycles per min standard seal
o On-line Systems and technical support via modem link, also allows direct software upgrades
o Food industry approved construction
o MADE IN UK Optional Features
o Printer / Coder o VMAP
o High Oxygen
Sealing capacity
No of trays: Length Width Depth Diameter
One (mm) 300 963 200 300
Two (mm) 300 481 200 300
Production capacity
Cycles per Minute
Vacuum / Gas Flush 10
Gas Flush 12
Standard Seal 16
Packaging materials:
Trays - C·PET - A·PET - R·PET - Polypropylene - PVC - Styrene - BoardPaper - Smooth Wall Foi
Dimensions (mm): Height 1475 x Width 975 x Length 3300
Gas flush consumption:
Pressure : 6bar
Flow: 50L/Min
Pressure: 87psi
Flow: 1.7CFM
Electrical supply: 400V 3 phase + neutral (fused at 16A) 50/60Hz
The machine is in Like New Condition.
Excellent Value Machine - available immediately
SOLD
Please contact James Jordan on 07732 505229 for further details.
Model: iO
Category: Sold Machines
Year: 2020
Status: Sold
Machine Notes:
MPE iO Automatic Inline Tray Sealer - SOLD
Year 2020
This is a Brand New tray sealer that was bought new in 2020 and never used in production.
It comes complete with three Die Sets as follows:
Pot 90mm Dia x 65mm High
Tray Sizes:
174mm L x 124mm W x 60mm H
110mm L x 80mm W x 35mm H
New bespoke tooling could be manufactured as required by the manufacturer to suit your product requirements.
Description:
The MPE i-0 is an inline twin lane all electric indexing push bar sealing system. Single point tray guide adjustment for both lanes. Recipe driven machine set up. Singulating powered outfeed to assist packs into one lane. Once the tooling is installed, recipe selected and the machine started all the operator has to do is load the machine.
Standard Features
o All Electric Machine
o Simple Intuitive HMI controls
o Recipe driven machine set-up
o Easy and quick Tool Change
o Single Point Self-centering tray guides
o Active film torque system
o Film Snap detection
o Registered / printed film ready
o MAP as standard (VMAP optional)
o Up to 16 Cycles per min standard seal
o On-line Systems and technical support via modem link, also allows direct software upgrades
o Food industry approved construction
o MADE IN UK Optional Features
o Printer / Coder o VMAP
o High Oxygen
Sealing capacity
No of trays: Length Width Depth Diameter
One (mm) 300 963 200 300
Two (mm) 300 481 200 300
Production capacity
Cycles per Minute
Vacuum / Gas Flush 10
Gas Flush 12
Standard Seal 16
Packaging materials:
Trays - C·PET - A·PET - R·PET - Polypropylene - PVC - Styrene - BoardPaper - Smooth Wall Foi
Dimensions (mm): Height 1475 x Width 975 x Length 3300
Gas flush consumption:
Pressure : 6bar
Flow: 50L/Min
Pressure: 87psi
Flow: 1.7CFM
Electrical supply: 400V 3 phase + neutral (fused at 16A) 50/60Hz
The machine is in Like New Condition.
Excellent Value Machine - available immediately
SOLD
Please contact James Jordan on 07732 505229 for further details.
