Manufacturer: Sovereign
Model: 140
Category: Sold Machines
Year: 2012
Status: Sold
Machine Notes:

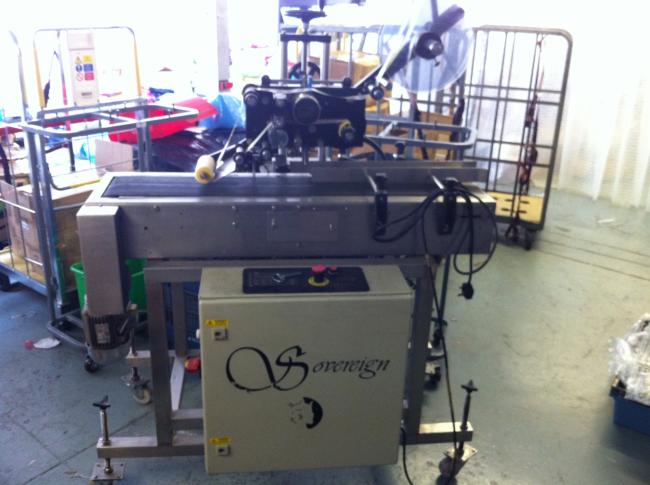

Sovereign 140 Overhead Labelling System
SOLD
Incorporating a 1500mm Length x 200mm Wide conveyor and
a Sovereign AC Servo Driven Labelling head with height and cross adjustment.
Refurbished in Year 2012
In excellent condition.
Previously used for one job for toothpaste tubes in packets.
Specifications:
Production Speed - 30-50units per minute
Can handle containers upto 135mm wide.
Electrical: 220-240V, Single phase - 50Hz

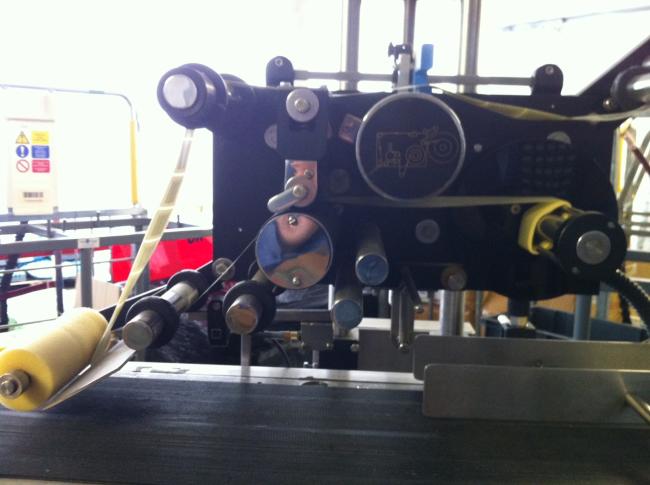

The head is self contained and suitable for die cut labels with 3mm gaps on an automatic dispensing quality carrier. To improve the control of the labels an 'S' roller drive system is fitted. An optical detector, fitted onto a simple to adjust slide, is used to detect the gap between the labels. A further optical sensor is provided to detect the product. Both sensors are solid state and are fitted with their own sensitivity adjustment. A 400-watt AC Servo motor controls the delivery of the label from 0-60 metres per minute. As standard label reels of upto 300mm outside diameter with 76.2mm inside diameter cores are required.
Label winding can be either inside or outside.

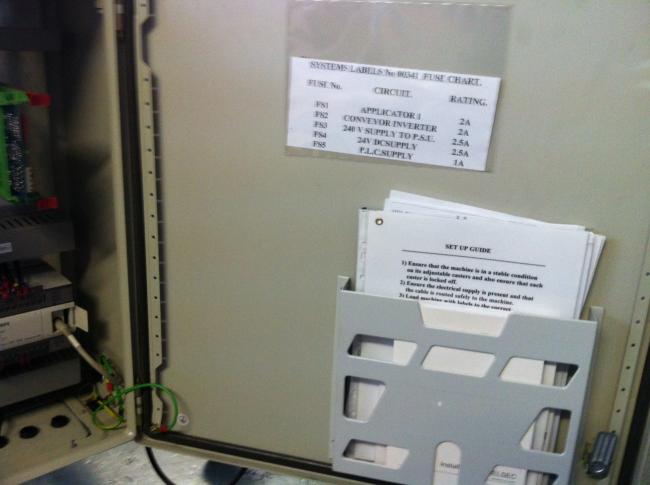

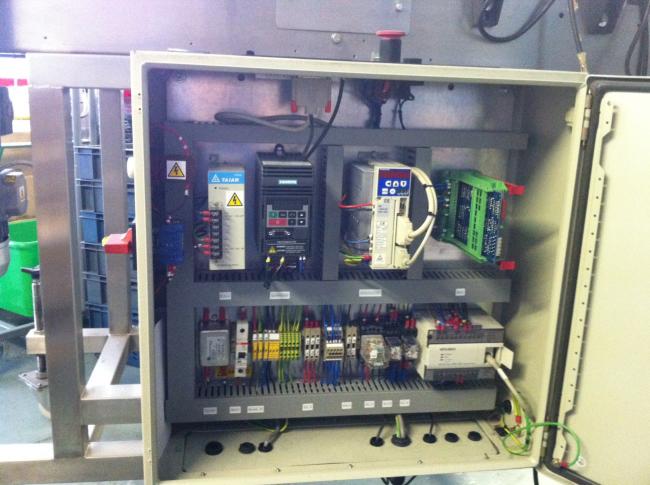

All drive motors are 3 phase AC Motors controlled by single phase inverters, housed in the main electrical enclosure.
Location: UK
SOLD
Model: 140
Category: Sold Machines
Year: 2012
Status: Sold
Machine Notes:
Sovereign 140 Overhead Labelling System
SOLD
Incorporating a 1500mm Length x 200mm Wide conveyor and
a Sovereign AC Servo Driven Labelling head with height and cross adjustment.
Refurbished in Year 2012
In excellent condition.
Previously used for one job for toothpaste tubes in packets.
Specifications:
Production Speed - 30-50units per minute
Can handle containers upto 135mm wide.
Electrical: 220-240V, Single phase - 50Hz
The head is self contained and suitable for die cut labels with 3mm gaps on an automatic dispensing quality carrier. To improve the control of the labels an 'S' roller drive system is fitted. An optical detector, fitted onto a simple to adjust slide, is used to detect the gap between the labels. A further optical sensor is provided to detect the product. Both sensors are solid state and are fitted with their own sensitivity adjustment. A 400-watt AC Servo motor controls the delivery of the label from 0-60 metres per minute. As standard label reels of upto 300mm outside diameter with 76.2mm inside diameter cores are required.
Label winding can be either inside or outside.
All drive motors are 3 phase AC Motors controlled by single phase inverters, housed in the main electrical enclosure.
Location: UK
SOLD
Call +44 (0)1255 852 111 for further details.
Machines are sold on 'as is, where is' basis.It is the responsibility of the purchaser to ensure the machine is fit for purpose.
All prices quoted are exclusive of VAT.
Information and pictures displayed may not represent actual
product being sold but a likeness.
It is recommended the purchaser views actual machinery prior purchase agreement.
Machines advertised may be withdrawn from sale at any time without notice or reason.
